Most pool-fence measurement mistakes start with one innocent shortcut: using the waterline alone to measure pool perimeter. The waterline is a useful starting reference, but it isn’t automatically the final fence path.
Different swimming pool perimeters create different barrier routes. Rectangular pools often have simple runs, while freeform pools require more planning. Pool shape matters, but pool size alone doesn’t determine the required barrier footage.
Use the waterline to orient the layout, then mark a reference line along the planned removable-barrier route. A pool wall isn’t a substitute for that route. Check the preliminary offset against local pool-barrier requirements and the manufacturer’s installation specifications before ordering or installing.
Record perimeter footage separately from square footage. Square footage describes area, not the linear footage required for a barrier. Start a measuring sheet for each run, corner, gate, and obstacle.
Key Takeaways
- Measure the planned removable-barrier route, not just the pool wall or waterline. Use the waterline as a reference, then mark the final fence path with the required offset.
- Walk and document the complete route, including straight runs, curves, corners, gates, access points, obstacles, surface changes, and elevation changes.
- Use string to measure rounded corners and freeform curves. Record each segment separately instead of relying on square footage or one estimated total.
- Check gate swing clearance, anchor surfaces, local pool-barrier requirements, and the manufacturer’s installation specifications before ordering or installing.
Start With the Barrier Path, Not the Pool Edge
A removable mesh fence should create a protected area around the water. It should not simply trace the pool’s outline like a tight border.
Homeowners should first walk the proposed route and mark it before taking final measurements. The route should provide practical clearance around access points, steps, ladders, equipment pads, screen doors, planters, and narrow walkways. A temporary reference line shows the intended barrier route, and each condition can change total footage.
Leave room between the water and fence
Start with an initial clearance from the waterline, the nearest water reference. Treat that distance as a planning estimate only, then verify it against local requirements and the manufacturer’s installation specifications. The barrier route should sit offset from the waterline, giving adults room to walk without crowding access points.
Mark edge offsets where the route changes. These marks create a second reference line for final checks.
The CPSC pool barrier guidelines also call attention to height, gates, and openings. They can inform planning, but they don’t replace local approval or the manufacturer’s installation specifications. A barrier is part of the safety plan, not backyard decoration.
A barrier route’s length is different from square footage, and square footage cannot provide the required linear footage.
A route may grow around a tanning ledge, a raised spa, or an outdoor kitchen. The offset from the waterline can change near fixed obstacles, so mark those conditions before finalizing the gate opening. The gate needs room to swing clear of chairs, grills, or planters.
Surface conditions can also affect anchor locations. A pool deck, hopper pad, pavers, and equipment areas may change where the barrier can be installed.
A safety cover isn’t the same measurement as a barrier perimeter. A vinyl liner and bead receiver can help identify the pool edge, but neither is the removable barrier route or a place to attach the barrier.
Gather simple tools before measuring
A 100-foot measuring tape works well for most yards. Homeowners should also bring string, chalk, a phone for photos, and a measuring sheet. It should have fields for each run, surface, gate, and obstacle.
String is especially helpful around curves. It follows the actual path where the mesh barrier will sit. A pool diameter cannot do that.

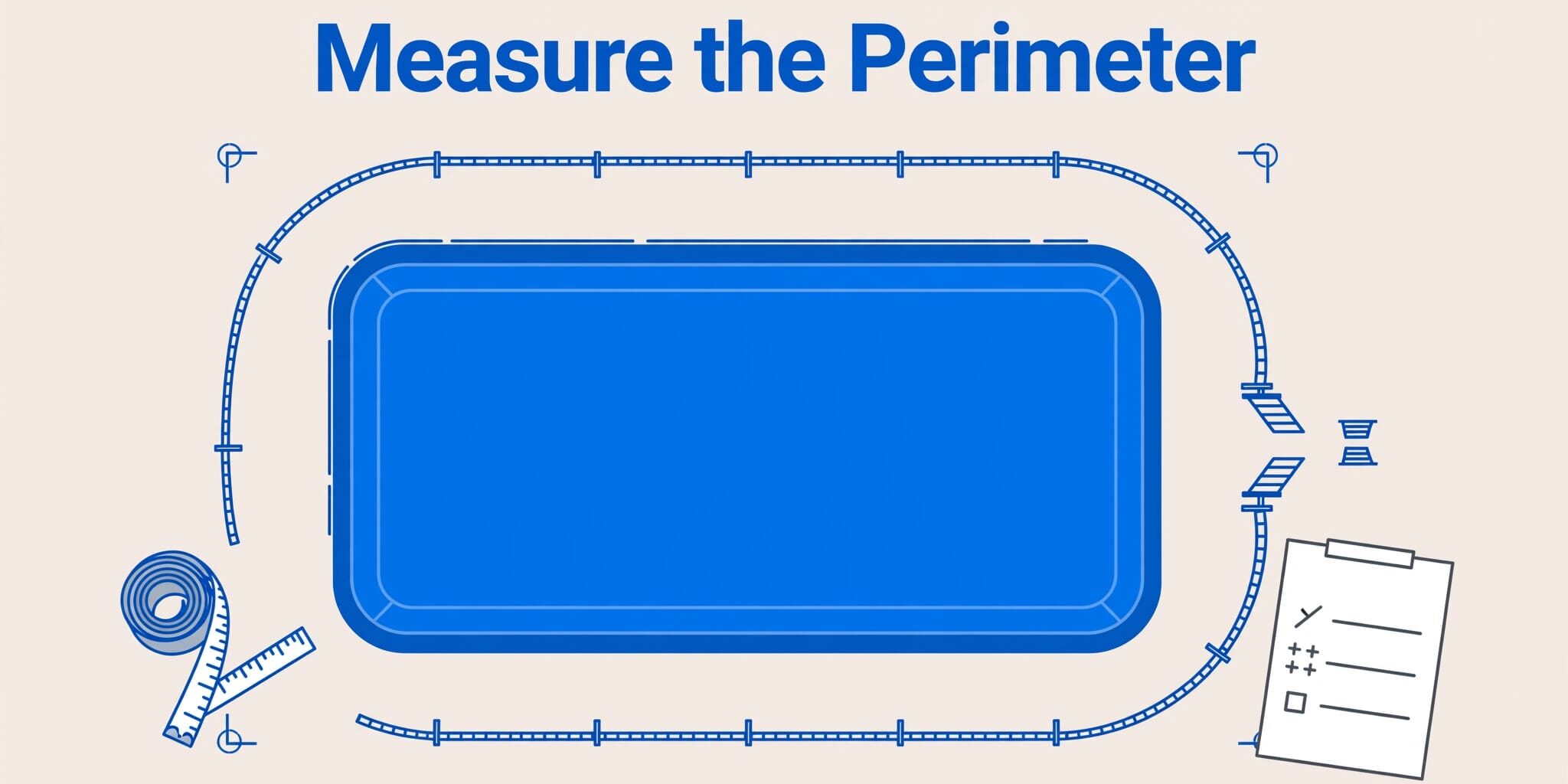

How to Measure Pool Perimeter Along the Fence Line
The safest approach is a sequential route check. Start at the planned gate, follow the enclosure route, and return to that same point along a reference line.
Mark the gate with chalk, then follow the enclosure route. Record every straight run, corner, curve, elevation change, surface change, gate, and access point. Use perimeter points for marked locations, and label fixed interruptions as obstacle points, including equipment, doors, planters, or furniture.
Measure straight sides and rounded corners
For rectangular pools, measure each planned barrier side separately. Use a measuring tape along the reference line, not the nearest pool edge.
Record each individual run on a measuring sheet. Add the four lengths only after recording them, then include paths around steps, equipment, gates, and other fixed interruptions.
Pool size and square footage aren’t interchangeable with barrier footage. Keep square footage separate from route length. Don’t use square footage as the final barrier total.
Curved sections need more care. First identify the corner type, whether square, rounded, or angled. For a rounded corner, run string along the arc path without pulling it straight across.
Mark the string, lay it flat, and measure the marked length with the tape. A straight line across an arc leaves out footage, which can cause problems when a custom mesh panel reaches the boundary.
The waterline can provide an edge reference, but it doesn’t set the barrier route. With a vinyl liner, the bead receiver may help identify where the waterline begins. Neither the waterline nor those edge details determines the barrier route.
Note any transition slope near a corner or gate. Measure along the intended barrier route, not across that change.
Keep the gate in the drawing
A self-closing, self-latching gate needs a practical entrance. Place the gate opening at a natural access point for adults.
The gate should open freely and close without help. Check swing clearance around nearby furniture, tight corners, and slopes. Confirm self-closing, self-latching operation before finalizing the route.
The residential barrier requirements offer a useful check for barrier height and gate function. Before ordering or installing, verify gate dimensions and placement against local pool-barrier requirements and manufacturer installation specifications.
Measuring a Freeform Pool Without Guessing
Freeform pools look beautiful. Their curves can make a straight line misleading.
For a removable barrier, establish a consistent offset from the waterline. Follow that offset along the arc path around the waterline instead of crossing the pool from side to side.
Use string to follow every curve
Place string along the proposed removable mesh fence route. Keep its spacing from the waterline as even as possible.
Mark the string every few feet with chalk. Tighter curves need closer marks. Treat the string as a reference line, then record each segment’s length. Add the segments to obtain the curved route.
A-B plot point triangulation can help with complicated curves or inaccessible areas. Use two fixed reference locations to locate several perimeter points, including obstacle points where fixed objects interrupt the route. Compare those points with the waterline before finalizing the offset. String usually provides the clearest field check for a removable barrier. It also preserves a visible reference line for the planned route.
Square footage offers useful context, but it can’t define a curved barrier route. Keep square footage as supplementary information for material planning, not a substitute for linear measurements. A square footage estimate still can’t replace the route length around each curve.
Note slopes, pavers, turf, and elevation changes
A level concrete pool deck is easier to document than mixed surfaces. Pavers, artificial turf, slopes, raised areas, and other elevation changes require more detailed notes.
Mark every transition slope on the sketch. Record each segment, surface, elevation change, and obstacle on a measuring sheet. Where a transition slope changes elevation, use a plumb bob to check vertical alignment. Record depth measurements only for a step, ledge, or drop. Depth doesn’t determine perimeter length.
Also document a safety cover, vinyl liner, and bead receiver around the edge. None are barrier attachment points.
Confirm the manufacturer’s installation specifications and local requirements before installation. Don’t assume turf, pavers, slopes, or raised areas automatically meet those requirements.
Common Pool Perimeter Mistakes to Avoid
The biggest mistake is measuring the pool wall or waterline instead of the planned barrier route. Treat the waterline as a reference line, not the complete fence path, and confirm the gate and access points separately.
Homeowners should also avoid guessing around fixed obstacles or elevation changes. Label the pool deck, hopper pad, and transition slope. Add obstacle points to the sketch and photo record with chalk.
Don’t rely on one total alone
A final total is helpful, but square footage cannot replace linear route measurements. Pool area and square footage do not show each segment, gate width, or access point.
Record individual segment lengths, gate width and location, corner conditions, access points, surface changes, elevation changes, and anything that could affect installation. Label the corner type as square, rounded, or angled, and note the reference line. Record edge details, such as a vinyl liner or bead receiver, without using them to determine anchor placement. Finish by transferring the verified total and segment lengths to a measuring sheet.
Photos taken from each corner also help. They show obstacles that a quick sketch may miss. A safety cover, including a custom safety cover, has separate dimensions and shouldn’t be copied into the removable-barrier order.
Before ordering, drilling, or installing, verify local pool-barrier requirements and the manufacturer’s installation specifications. Property lines, canals, seawalls, and screen enclosures may require additional review.
Frequently Asked Questions
Can I measure the pool perimeter by following the waterline?
The waterline is a useful starting reference, but it is not automatically the removable-barrier route. Mark the planned fence line with the required offset and measure along that reference line.
Does pool square footage tell me how much fencing I need?
No. Square footage describes the pool’s area, while a barrier requires linear footage along each run, curve, gate, and obstacle. Keep area measurements separate from the route total.
How should I measure a freeform pool with curves?
Place string along the planned barrier route and keep its spacing from the waterline as even as possible. Mark and measure the string in segments, then add those lengths together.
What should I record besides the total perimeter?
Record each segment, corner type, gate location and width, access point, obstacle, surface change, and elevation change. Photos and a measuring sheet can help identify conditions that may affect installation.
Should I verify the layout before installing the barrier?
Yes. Check the completed route against local pool-barrier requirements and the manufacturer’s installation specifications before ordering, drilling, or installing. Confirm that the gate can open freely, self-close, and self-latch.
A Measured Layout Brings Peace of Mind
Begin with the waterline as a reference line, then mark the planned barrier route. Consider pool size, safe walking space, and gate access before recording each segment.
Use a measuring tape in the field, and note every segment and access point on a measuring sheet. Review the completed pool measurements against the reference line before ordering or installation.
Edge details such as a bead receiver may matter, but they shouldn’t determine the barrier route. Verify the full layout so the gate can close properly and the finished barrier feels secure.
